Mercedes-Benz Vito Tourer

The Definition of Space Travel.

Mercedes Vito Wheelchair Accessible Vehicles
Brochure Request

Get a
Brochure
360 view

Explore in
360º
Home Demonstrations

Free Home
Demonstrations

The Brotherwood® Ex-i60 Mercedes-Benz Vito Tourer Wheelchair Accessible Vehicle brings a new meaning to space travel: offering unparalleled interior space, out of this world passenger comfort, and seating for up to 7. The Brotherwood® conversion offers space for almost any wheelchair user, yet the compact footprint of the Vito Tourer WAV is ideal for everyday driving.


  • Flat, Level Lowered Floor Conversion
  • Inclusive, Central Wheelchair Location in 2nd Row
  • 4 to 6 Seats and 60″ Internal Headroom
  • PAWRS Powered Loading System as Standard
  • Ideal for Taller Wheelchair Users
  • Full-Size 2nd Row Passenger Seats

4-6 SEATS

+1 WHEELCHAIR SPACE

60 INCHES

INTERNAL HEADROOM

72¾ INCHES

LOW FLOOR LENGTH

INCLUSION

The inclusive Brotherwood design enables the wheelchair passenger to travel directly between the 2 full-size rear passenger seats, with a 27″ seat-to-seat gap. As an added bonus, 2 further seats can be optionally equipped in the third row.

Mercedes Vito Wheelchair Accessible vehicle
Mercedes Vito WAV Interior Wheelchair Space

SPACE

The huge interior space offered by the Vito Tourer is enhanced by Brotherwood, the only Vito Tourer WAV conversion with a fully lowered, level floor offering an unbeatable 60″ internal headroom and entry height for wheelchair passengers.

HOOK-I PAWRS

Ensuring both easy access, and safety and stability when travelling, the Hook-i PAWRS remote-controlled front restraint system also offers powered assistance when loading a wheelchair and passenger. PAWRS makes loading effortless for combined wheelchair and passenger weights up to 250kg, with no pushing. Once inside the vehicle, PAWRS restrains the wheelchair in place, providing a secure and stable ride in conjunction with the rear restraint belts. A three-point cross and lap safety belt is also fitted as standard to ensure safety for the wheelchair user.

Mercedes Vito Wheelchair Winch
Mercedes Vito WAV Interior

VISIBILITY

The central wheelchair location and deep, level floor conversion enable fantastic outward visibility for the wheelchair passenger. As an added bonus the central air vent creates a comfortable atmosphere for the wheelchair user to enjoy.

Dimensions

  mm inches
Entry Height 1512 59.5
Max. Internal Headroom  1524 60
Max. Wheelchair Armrest Width 710 28
Lowered Floor Length 1850 72.8
Lowered Floor Width 762 30
Access Ramp Length 1123 44.2
Access Ramp Width 764 30
Access Ramp Angle 12º
Exterior Length 4895 192.7
Exterior Width 2244 88.3
Exterior Height 1890 74.4

Internal headroom may vary depending on wheelchair travelling position.

Mercedes-Benz Vito WAV Layout
Brotherwood Deliver One Of a Kind WAV

At Brotherwood we believe in always going the extra mile to provide vehicles that fit [...]

READ MORE
08
Jan
Brotherwood clients Dani & Daniel with their new WAV
Transform Your Life With a New Wheelchair Accessible Vehicle

Finding the right Wheelchair Accessible Vehicle can have a transformative effect on your life. Making [...]

READ MORE
21
Mar
Mercedes V-Class WAV
Brotherwood Klastar is the Perfect Match for Steven

When Steven was searching for a new Wheelchair Accessible Vehicle with the style to match [...]

READ MORE
24
Jan
Brochure Request

Get a
Brochure
360 view

Explore in
360º
Home Demonstrations

Free Home
Demonstrations

Features

Low, Flat, Level Floor

A steeply sloping floor, sitting too high or far back in the vehicle can not only be isolating, but also an uncomfortable ride for the wheelchair user. The level, lowered floor of a Brotherwood® conversion offers a stable, comfortable, natural seating position, for better visibility, inclusion and ride quality.

Spacious Headroom

Our lowered floor allows a huge headroom inside the Vito Tourer. As a result the wheelchair user enjoys excellent visibility out of the large windows. Sitting lower in the vehicle also lowers the wheelchair user’s centre of gravity, reducing the feeling of body roll for a better ride.
Mercedes WAV Seats

Full Size Second-Row Seats

The second row seats are full size for optimal passenger comfort, yet still offer 28.5″ of space in between thanks to our innovative Brotherwood configuration. This means the wheelchair user can travel between the 2 rear seats inclusively.

Third Row Seats

The Ex-i60 can be fitted with an additional two seats in the third row, enabling up to 7 individuals to travel together. The specially shaped seats are scuplted to allow 27” of access space between them, meaning that the wheelchair user can embark and disembark without removing or folding the seats, and without the need for any of the other passengers to move. Alternatively an emergency spare wheel can be fitted in lieu of one third row seat. Optional Fitment on All Models.
Brotherwood PAWRS Winch System

Hook-i PAWRS

The Hook-i PAWRS is a remote-controlled, powered front restraint system, to assist loading a wheelchair and passenger. No pushing required, simply attach the restraints and press the remote control for effortless loading of combined wheelchair and passenger weights up to 250kg.

Mercedes Vito Wheelchair Access ramp

Counterbalanced Ramp

Our custom-built, lightweight ramp is counterbalanced, so that it can be lifted with minimal effort by foot or hand. The angle is shallow to enable easy loading , while long life fittings ensure minimal maintenance and reliable performance for years to come. Finished with a high-traction surface that makes access easy for manual or power chairs.
Mercedes Audio

Mercedes-Benz Audio 15 System

Audio 15 features a high-resolution 14.7cm (5.8-inch) TFT display and numerous connection options including SD card, USB, Aux, Bluetooth® with audio streaming.
MAP pilot

Becker® MAP PILOT

The Becker® MAP PILOT transforms the Audio 15 radio into a high-quality, intuitive navigation system.Optional.
Thermotronic

Thermotronic

THERMOTRONIC regulates the temperature, airflow and air distribution separately for the driver and co-driver.Optional.
Rear Climate

Tempmatic Rear Climate Control

The Tempmatic semi-automatic climate control system features an optional module in the rear to optimise ventilation in the passenger compartment with evenly distributed warm or cool air.Optional.
Cruise control

Cruise Control

Cruise control helps to maintain a set speed, making the driver’s job easier. SPEEDTRONIC speed limiter also makes it easier to maintain a set speed, for example in motorway road works.
Park Assist

Active Parking Assist

Active Parking Assist helps the driver find somewhere to park and assists when reversing into or out of a parking space.Optional.
collision prevention

Collision Prevention Assist

COLLISION PREVENTION ASSIST combines a distance and collision warning with Brake Assist BAS PRO.
attention assist

Attention Assist

ATTENTION ASSIST can use a variety of parameters to detect signs of tiredness and alert the driver.
lane Keeper

Lane Keeping Assist

Optional Lane Keeping Assist can help prevent accidents caused by unintentional departure from your lane.
blind spot assist

Blind Spot Assist

Optional Blind Spot Assist can help prevent accidents when changing lane, for example on motorways.
Reversing camera

Reversing Camera

The optional reversing camera shows a photorealistic image of your surroundings with dynamic guide lines and an indication of the direction of travel.
airbags

Airbags

The airbags for the driver and co-driver and thorax/ pelvis sidebags and windowbags in the front form part of the standard safety equipment.
pas2012

PAS2012-1:2012 Compliant

PAS is developed according to guidelines set out by the BSI. It has been adopted by the Motability Scheme, to ensure best practise in WAV design, good access, structural integrity, rigorous safety testing, and good customer service.Read more about PAS here.
UTAC VCA

ECWV Type Approved

Brotherwood® WAVs meet the highest standards. WAVS with ECWVTA have undergone rigorous testing to ensure high levels of performance and safety, giving you complete peace of mind.Read more about European Community Whole Vehicle Type Approval here.

Specification & Pricing

SPECIFICATIONS

Ex-i60

  • 6-speed manual transmission
  • 16-inch steel wheels 6.5 J x 16 ET 52 with size 195/65 R 16 tyres
  • Adaptive brake lights
  • Electromechanical steering
  • Heated and electrically adjustable exterior mirrors
  • Tinted glass all round
  • Lockable and illuminated glove compartment
  • Airbags for driver and co-driver
  • Driver and co-driver seat with manual adjustment and attractive fabric upholstery
  • Seat-belt warning device for driver and co-driver
  • Tailgate with window and wipe/wash system
  • Illuminated mirrors on sun visors
  • Overhead control unit with two reading lights
  • Multifunction steering wheel with trip computer
  • Cruise control
  • Audio 15 infotainment system
  • Injection-moulded side wall and door trim in passenger compartment with practical stowage compartments
  • Thorax/pelvis sidebags and windowbags in front
  • Crosswind Assist
  • ATTENTION ASSIST
  • Hill-Start Assist
  • Central locking with remote control
  • Heat insulating glass all round

Ex-i60 PLUS

additional specification:

  • Front and rear colour-coded bumpers and removable body parts
  • 16-inch 10-spoke light-alloy wheels
  • Headlamp Assist for automatic activation and deactivation of the headlamps
  • TEMPMATIC semi-automatic air conditioning system
  • Comfort driver’s and front passenger’s seats
  • Light package with interior and ambient lighting
  • Exit lamps
  • Rain sensor for automatic adjustment of the windscreen wiper frequency
  • Chrome trim in instrument panel and door panels

Retail Pricing

Model Price from Engine Size Fuel
Vito Tourer Ex-i60 Compact 110 CDi 100hp £38,434.36 1.7 Diesel
Vito Tourer Ex-i60 Compact 114 CDi 134hp £41,805.96 1.7 Diesel
Vito Tourer Ex-i60 PLUS Compact 110 CDi 100hp £41,309.81 1.7 Diesel
Vito Tourer Ex-i60 PLUS Compact 114 CDi 134hp £44,433.33 1.7 Diesel

Total ex-factory price including Pre Delivery Inspection, Number Plates, 2 x Rear Passenger Seat, PAWRS 2. All prices quoted assume VAT exemption. Brotherwood Automobility reserve the right to change specification and price from those published, but will honour orders where contract or purchase has been initiated.

FOR CUSTOMER OR DEALER SUPPLIED CAR: Fully ‘Type Approved’ Brotherwood EX-i60 conversion [1524mm (60”)] headroom £19,060.33
Motability Logo

Motability Advance Payments

Model Advance Payment Engine Size Fuel
Vito Tourer Ex-i60 Compact 110 CDi 100hp £TBC 1.7 Diesel
Vito Tourer Ex-i60 Compact 114 CDi 134hp £TBC 1.7 Diesel
Vito Tourer Ex-i60 PLUS Compact 110 CDi 100hp £TBC 1.7 Diesel
Vito Tourer Ex-i60 PLUS Compact 114 CDi 134hp £TBC 1.7 Diesel

Advance Payment on five year contract hire scheme, includes Air Conditioning, Metallic Paint.

Manufacturer Options

Option Price
Paint – optional colour (metallic) £565.00
Electrically Operated Side Doors £980.00
Tempmatic Air Conditioning In Cab £950.00
Thermotronic Air Conditioning & Climate Control In Cab £700.00 – 1,620.00
Tempmatic Air Conditioning In Rear (only with AC In Cab) £735.00
Active Safety Package: Collision Prevention, Blind Spot,
Lane Keeping and Headlight Assist		 £815.00
Collision Prevention Assist inc. Headlight Assist £215.00
Driver’s Pack: Active Parking Assist, Parktronic, Electrically
Folding, Heated Adjustable Rear View Mirrors, Tempmatic A/C		 £830.00 – 1,675.00
Becker Map Pilot Satellite Navigation £784.00
Rearview Camera £480.00
Parking Pack: Active Parking Assist & Rearview Camera £1,010.00
Seats Covered in Leatherette £150.00
Dark Tint Privacy Glass, Heat Insulating £480.00
Heated Driver & Front Passenger Seats £280.00

More options are available, please request a brochure. Option availability dependent on specification. Please call for details.


Brotherwood Options

Option Price
Privacy Glass – Retro fitted £450.00
Silver Seal total car protection £299.00
Additional Third Row Seats (ea) £989.00
Body Coloured Front Grille & Door Mirrors £550.00
Spare Wheel + Safety Tested Bracket w/Cover in Lieu of Gel Pack £598.00

More options are available, please request a brochure. Option availability dependent on specification. Please call for details.

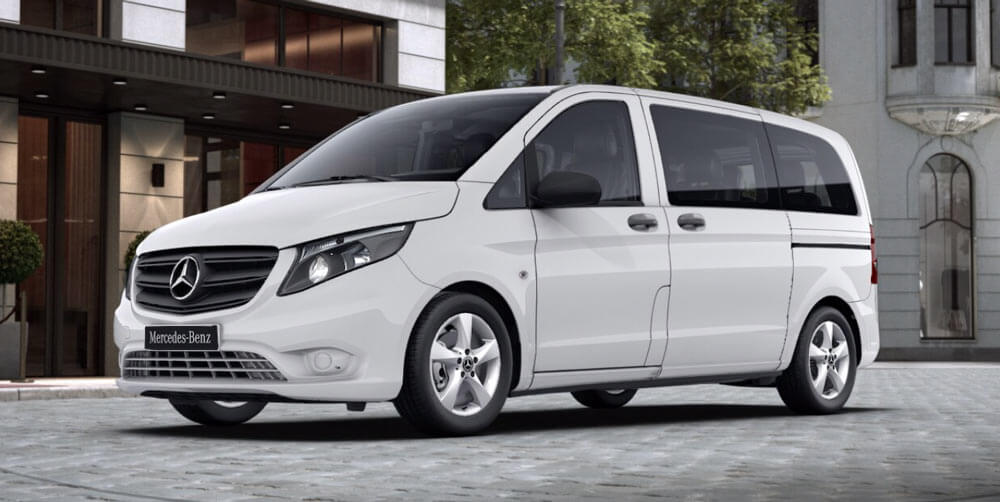

Artic White
Steel Blue
Granite Green

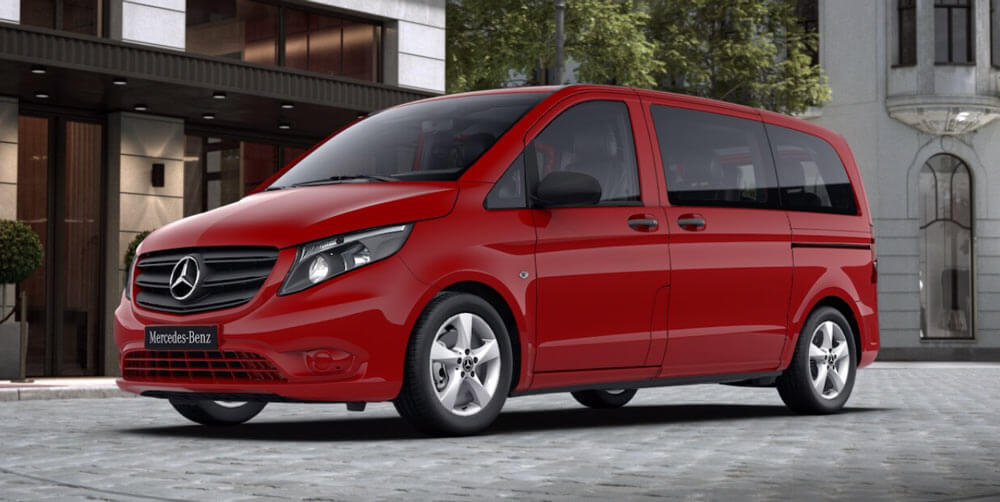

Jupiter Red

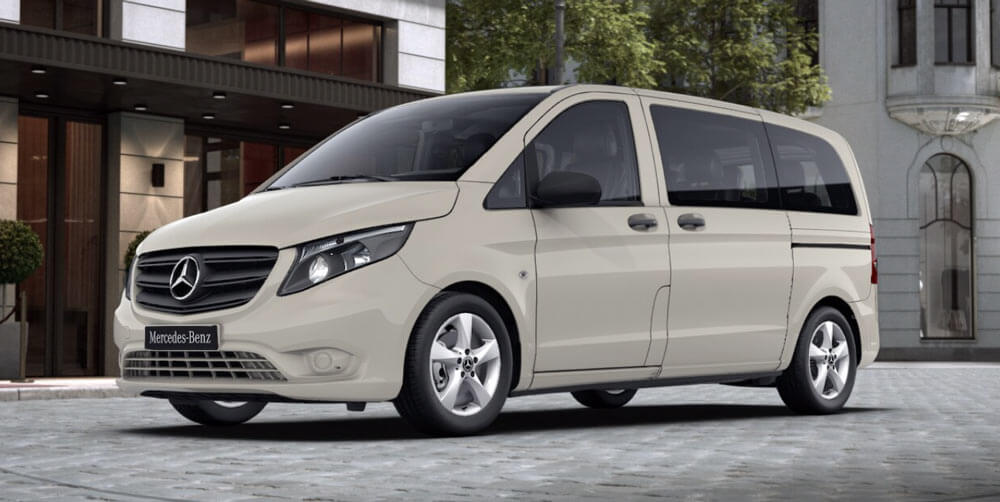

Pebble Grey

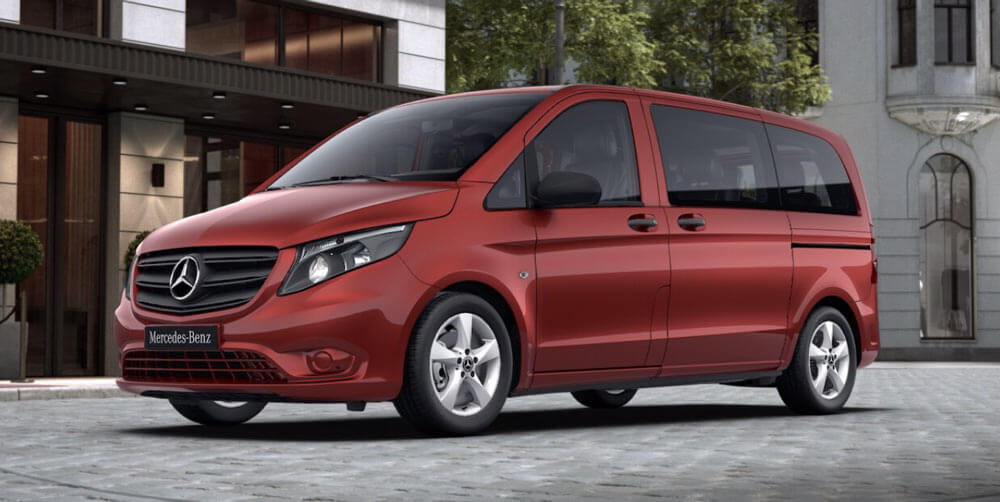

Hyacinth Red Metallic
Graphite Grey Metallic

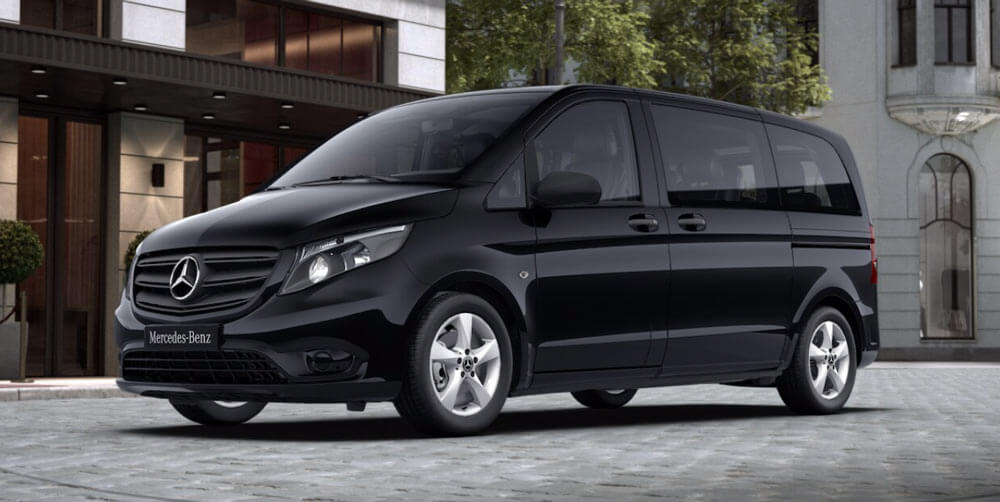

Obsidian Black Metallic
Cavansite Blue Metallic

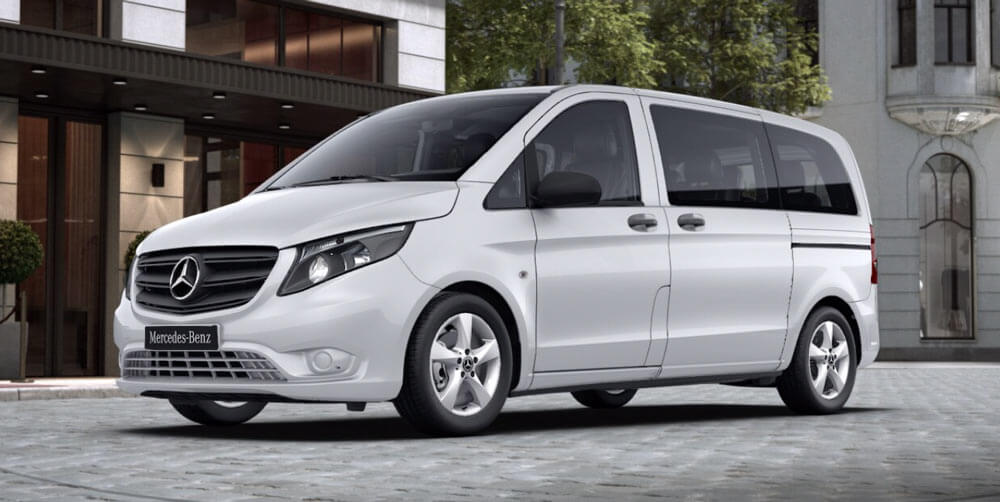

Rock Crystal White Metallic
Selenite Grey Metallic

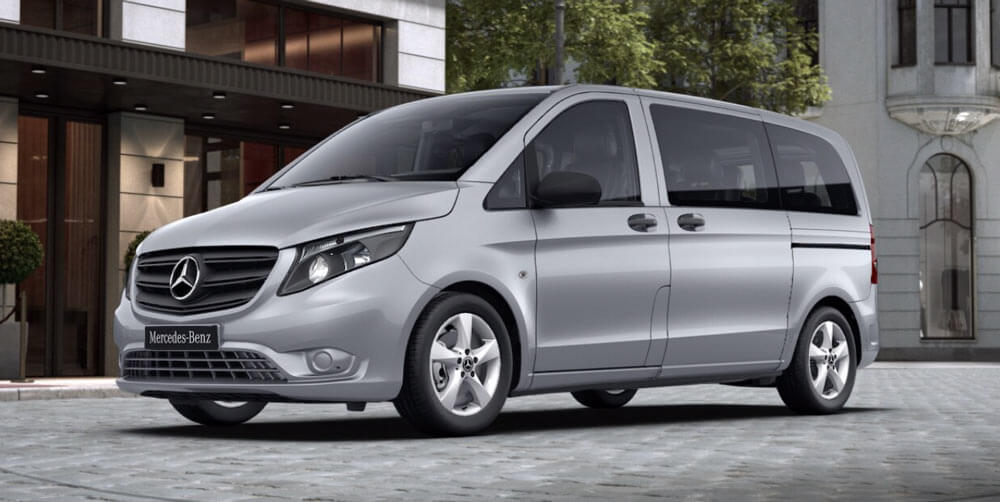

Brilliant Silver Metallic

For complete peace of mind we offer an annual Safety Assurance Programme. A qualified service engineer will visit at a time and place that suits you, to perform a full 15-point conversion safety inspection, including restraints, ramp, safety belts and more to ensure safe operation of your conversion.

For Motability clients an annual inspection is included at no cost for the first 5 Years of the Motability agreement. For all other clients the first annual visit is free of charge. You can then choose to book one or more subsequent annual visits.

WAV Safety Check

What’s Checked:

  • Ramp Grip Tape
  • Ramp Rubbers
  • Floor Covering & Carpets
  • Front, Rear and Occupant Restraints
  • Rear Restraints
  • Occupant Restraints
  • Cut-Off Switch
  • Front restraint
  • Power Switch
  • Tailgate Struts
  • Remote Control
  • Ratchin / PAWRS Operation
  • Ramp Operation
  • Tyre Wear
  • Oil Level Check
  • Coolant Level Check

Pricing

Annual Safety Inspection Price Motability Clients
Year 1 Annual Inspection Included Included
Single Subsequent Annual Inspection £175.00 Included for first 5 Years
Year 2 and 3 Annual Inspection £300.00 Included for first 5 Years

If discount is applied to your order we reserve the right to rescind the offer to a free first year service.
