Mercedes-Benz V-Class

The Ultimate Wheelchair Accessible Vehicle.


The Only V-Class Conversion with a Full-Length, Level Lowered Floor plus;
  Up to 6 Seats + Wheelchair   7 Speed Automatic  Powered Ramp & Tailgate


QUALITY
The Brotherwood® ‘Klastar’ Mercedes-Benz V-Class conversion is designed and engineered from the ground up at our manufacturing facility in Dorset, England, to be the ultimate Wheelchair Accessible Vehicle.

The Klastar conversion is unique in it’s development, handbuilt and finished by a select team of our most experienced engineers; ensuring a quality of finish and craftsmanship a class above any other Wheelchair Accessible Vehicle.

COMFORT
At the heart of the Brotherwood® Klastar conversion is a perfectly level, lowered floor. This unique Brotherwood® design offers numerous benefits for the wheelchair user. By lowering the floor, the visibility for the wheelchair user out of the windscreen and side windows is greatly increased, making every journey more enjoyable. More headroom is also generated; creating a comfortable, spacious cabin ideal for taller wheelchair users. The centre of gravity for the wheelchair user is also reduced, which considerably reduces the sensation of body roll as the vehicle leans from side to side.

Ensuring that the floor is level offers greater comfort for the wheelchair user, with a naturally ergonomic seating position. Enabling the wheelchair user to travel centrally within the vehicle also ensures a more comfortable ride, as fewer bumps and undulations in the road surface are felt when positioned further forward in the vehicle.

INCLUSION

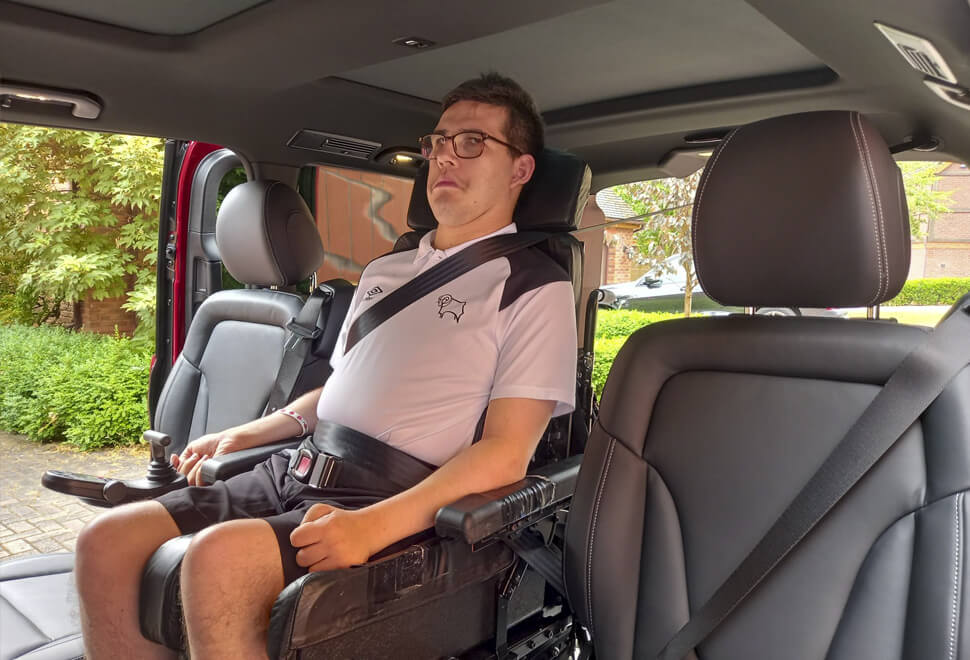

The Brotherwood® Klastar conversion is designed with families in mind. The lowered floor and central wheelchair position enables the wheelchair user to travel inclusively, as part of the family group. We also aim to provide an equal head-height for ablebodied and wheelchair seated passengers alike; this enables easier conversation and promotes the feeling of inclusivity and wellbeing for the wheelchair user.

SAFETY
Safety for all means peace of mind; for driver and passengers alike. The Mercedes-Benz V-Class is the pinnacle of passenger safety, with innovative driver assistance and passive safety systems safeguarding all occupants. The Brotherwood® Klastar conversion is also designed with passenger safety in mind; the Power Assisted Wheelchair Restraint System is dynamically tested, whilst the standard ‘STORQ’ Self-Tensioning Restraint System automatically applies tension to the rear wheelchair restraints; ensuring a safe and stable ride for the wheelchair user.

PRACTICALITY
Klastar is the ideal WAV for families; in addition to 2 full-size passenger seats in the second row alongside the wheelchair user, a further 2 folding cantilever action seats can be optionally equipped in the third row. The high quality seats match the original Mercedes-Benz interior, are extremely comfortable and large enough to seat adults; yet can be folded aside in seconds when not in use or to allow wheelchair access.


Dimensions

All dimensions are approximate and should be used as a guide. To assess your personal requirements, please contact us.

  mm inches
Entry Height 1473 58
Max. Internal Headroom  1447 57
Max. Wheelchair Armrest Width 660 26
Converted Floor Length 1955 77
Converted Width 711 28
Access Ramp Length 1100 43
Access Ramp Width 740 29
Exterior Length 4895 192.7
Exterior Width with mirrors 2249 88.5
Exterior Height 1880 74


Mercedes V-Class WAV Layout



Conversion


Level Floor

Low, Flat, Level Lowered Floor

A sloping floor, sitting too high or far back in the vehicle can not only be isolating, but also an uncomfortable ride for the wheelchair user. The low, level floor of a Brotherwood® conversion offers a stable, comfortable, natural seating position, for better visibility, inclusion and ride quality.

Brotherwood headroom

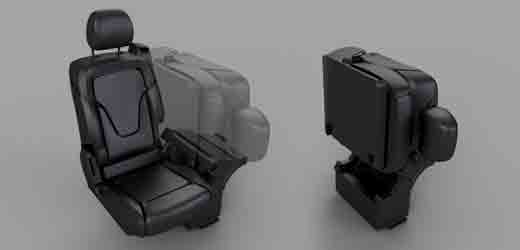

Folding Third Row Seats

A Pair of folding cantilever action seats can be optionally equipped in the third row. The high quality seats match the original Mercedes-Benz interior, are extremely comfortable and large enough to seat adults; yet can be folded aside in seconds when not in use or to allow wheelchair access.

Brotherwood Seats

Full Size Second-Row Seats

The second row seats are full size for optimal passenger comfort, yet still offer 26" of space in between thanks to our innovative Brotherwood configuration. This means the wheelchair user can travel between the 2 rear seats inclusively.

STORQ System

STORQ System

STORQ automatically applies extra tension to the wheelchair restraints – ideal for those with limited grip or dexterity who might struggle with traditional buckles. By ensuring the rear restraints are properly tensioned, the wheelchair user enjoys a safer, more stable ride.

Storq System

Hook-i PAWRS

The Hook-i PAWRS is a remote-controlled, powered front restraint system, to assist loading a wheelchair and passenger. No pushing required, simply attach the restraints and press the remote control for effortless loading of combined wheelchair and passenger weights up to 250kg.

Brotherwood powered ramp

Powered Ramp

Luxury and convenience go hand in hand. In addition to powered opening of the sliding doors and tailgate, the access ramp is fully automated, deploying and retracting via remote control.


Comfort & Convenience


Active Park Assist

Active Parking Assist

Helps the driver find somewhere to park and assists when reversing into or out of a parking space, making every journey relaxing and hassle free.

Map Pilot

Garmin® Map Pilot

User-friendly navigation, precise map data and excellent route guidance – the Garmin® MAP PILOT brings all the benefits of a Garmin® navigation system to the Audio 20 CD with touchpad.

Heated Seats

Heated Front Seats

The driver and front passenger seats are finished in Nappa leather and can be independently heated in 3 stages, making long journeys and cold days comfortable.

Thermatic

Thermatic Climate Control

The 3-zone climate control automatically controls temperature, air flow and distribution to the front and rear, the climate is kept constant at the desired level at all times.

7GTronic

7G-Tronic Plus

The automatic transmission offers outstandingly smooth gear changes and tremendous potential for saving fuel, with intelligently optimised power delivery for an outstanding drive.

Memory Seats

Memory Seat Package

For ultimate convenience, equip the optionally available fully electric front passenger and driver seats; with memory storage of multiple seat and exterior mirror settings.

Optional.


Safety


Attention Assist

Attention Assist

This innovative system can use a variety of parameters to detect signs of tiredness and alert the driver, alerting you when it’s time to take a well earned break.

Collision Prevention

Collision Prevention Assist

Constantly monitors the distance between you and the vehicle in front, warning before a potential collision and automatically boosts the braking power in the event of danger.

Crosswind Assist

Crosswind Assist

Detects sudden, strong gusts of wind which can act on the side of your vehicle, and helps to prevent your car from “drifting” out of lane by means of targeted braking on one side of the vehicle.

PAWRS

Hook-i PAWRS

The Power Assisted Wheelchair Restraint System is dynamically tested to safely restrain combined wheelchair and passenger.

STORQ System

STORQ System

The new patented Brotherwood STORQ System makes securing the wheelchair simple. Ensuring the wheelchair restraints are tensioned is critical for passenger safety and ride quality.

Distance Pilot

Distance Pilot

Comfortably maintains the distance to the vehicle in front when driving in stop-start traffic, automatically maintaining a set speed above 20 km/h and keeps a safe distance to the vehicle in front.


Peace of Mind


bsi logo

PAS2012-1:2015 Compliant

PAS is developed according to guidelines set out by the BSI. It has been adopted by the Motability Scheme, to ensure best practise in WAV design, good access, structural integrity, rigorous safety testing, and good customer service.

Read more about PAS here.

VCA logo

ECWV Type Approved

Brotherwood® WAVs meet the highest standards. WAVS with ECWVTA have undergone rigorous testing to ensure high levels of performance and safety, giving you complete peace of mind.

Read more about European Community Whole Vehicle Type Approval here.

Sport

  • Exterior:
  • Mirror package – electrically folding mirrors and automatically dimming exterior driver’s mirror and rear-view mirror
  • 18" alloy wheels – 5-twin-spoke design
  • Active Parking Assist with reversing camera
  • Anodised roof rails
  • Chrome trim in front bumper
  • EASY-PACK automatic powered tailgate with separate opening rear window
  • Headlamps – LED Intelligent Light System including integral LED daytime running lamps
  • Heated windscreen wash
  • Privacy glass
  • Rear lamps – LED tail lamps, brake lamps and indicators
  • Uprated brake calipers

  • Interior:
  • Ambient lighting – three colours
  • ARTICO leather upper dashboard with contrast stitching
  • Audio 20 CD including touchpad, with integrated media interface port for iPod or iPhone and Bluetooth interface with hands-free function
  • Electric sliding doors – both sides
  • Garmin MAP PILOT navigation syste
  • m Heated comfort front seats, including armrests
  • Luxury centre console with retractable cover, two cup holders, 12 V socket and multimedia box
  • Nappa leather upholstery
  • Steering wheel – 3-spoke multi-function steering wheel trimmed in nappa leather

AMG Line

additional specification:

  • Exterior:
  • 19" AMG alloy wheels (4) – 7-twin-spoke design
  • AMG bodystyling – front apron, rear apron, side skirts, rear spoiler and chrome load sill
  • Metallic paint

  • Interior:
  • Carbon-look trim
  • Chrome air vents

Retail Pricing


Call for a personalised quote today on
0844 288 9366
(FREEPHONE)

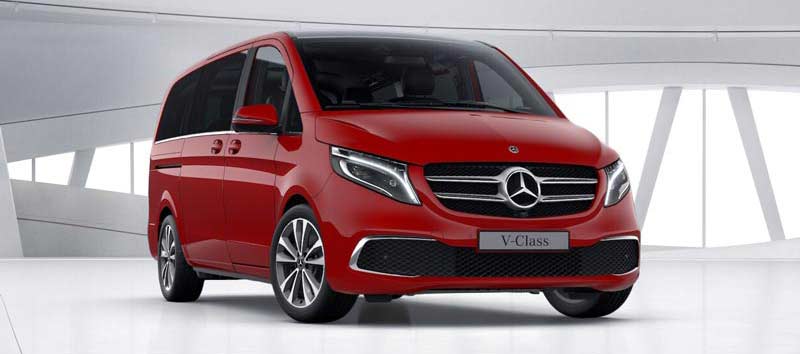

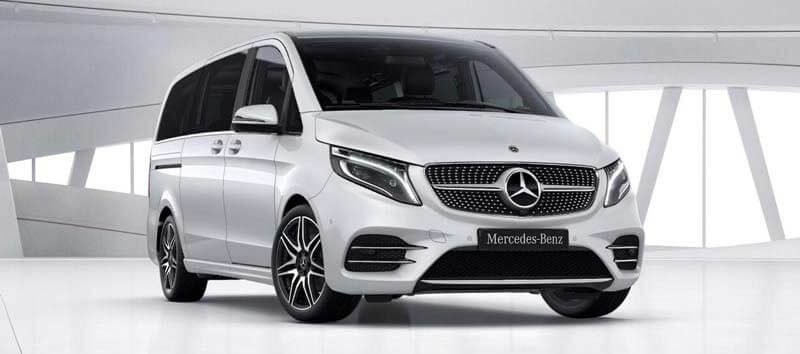

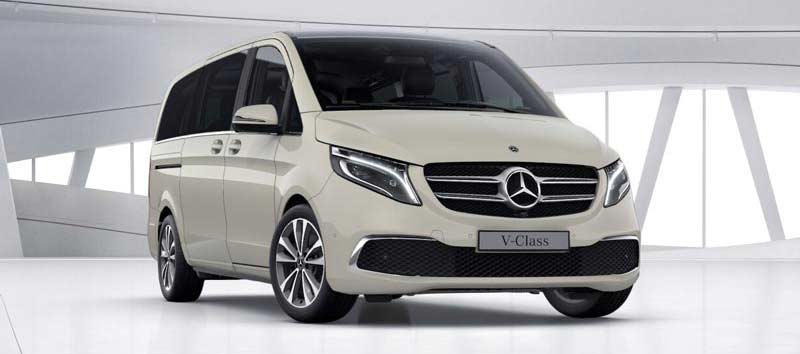

Mercedes-Benz V-Class Colours

Please note that, owing to limitations of on-screen representation, paint colours may differ from those shown. Colour choice and availability subject to change at the discretion of the manufacturer.

For complete peace of mind we offer an annual Safety Assurance Programme. A qualified service engineer will visit at a time and place that suits you, to perform a full 15-point conversion safety inspection, including restraints, ramp, safety belts and more to ensure safe operation of your conversion.

For Motability clients an annual inspection is included at no cost for the first 5 Years of the Motability agreement. For all other clients the first annual visit is free of charge. You can then choose to book one or more subsequent annual visits.

WAV Safety Check

What's Checked:

  • Ramp Grip Tape
  • Ramp Rubbers
  • Floor Covering & Carpets
  • Front, Rear and Occupant Restraints
  • Rear Restraints
  • Occupant Restraints
  • Cut-Off Switch
  • Front restraint Power Switch
  • Tailgate Struts
  • Remote Control
  • Ratchin / PAWRS Operation
  • Ramp Operation
  • Tyre Wear
  • Oil Level Check
  • Coolant Level Check
Annual Safety Inspection Price
Years 1 - 3 Annual Inspection Included
Single Subsequent Annual Inspection £175.00

If discount is applied to your order we reserve the right to rescind the offer to a free first year service.


Talk to a Specialist
For more information, or to book a FREE no-obligation home demonstration call today on
0844 288 9366
(FREEPHONE)
  No Pressure or Obligation    Friendly, Experienced Advisors    Comprehensive Needs Assessment
