NEW | TALL BOY
Ford Tourneo Custom
With 63″ / 1610mm Internal Headroom
As mobility evolves, wheelchair users can access more of the urban and natural environment. Ever-increasing options for comfortable, versatile and capable wheelchairs can make it easier to travel wherever and whenever you wish.
As wheelchairs continue to grow, a new challenge arises for our engineers: to deliver an accessible vehicle that sets new benchmarks for internal space. Enabling users of even the largest of mobility devices to travel inclusively, in comfort and safety.
Conversion Features
4 Seats
+1 Wheelchair Space
63 Inches
Internal Headroom
67¾ Inches
Lowered Floor Length
SPACE
Flat, Level Lowered Floor
Whilst imperceptible from the exterior, interior space is maximised by the Brotherwood® flat, level, lowered floor, which runs smoothly up to the front seats. Offering more space for the wheelchair user to travel centrally, in line with rear seat passengers, and with a better view out of the windows and windscreen.
COMFORT
Comfortable Ride
The flat floor promotes ideal posture for the wheelchair user, making every journey more comfortable. Sitting as low as possible within the car also reduces the wheelchair user’s centre of gravity, minimising the feeling of body-roll when cornering.
SPACE
63″ Internal Headroom
Our all-new “Tall Boy” conversion for the Ford Tourneo Custom sets new standards: with an incredible 1600mm (63”) of internal headroom, the barriers for even the tallest of wheelchair users are eliminated, with a 760mm (30”) wide flat, level, lowered floor ensuring a spacious, comfortable travelling position.
ACCESSIBILITY
PAWRS
The Hook-i PAWRS is a remote-controlled, powered front restraint system, to assist loading a wheelchair and passenger. No pushing required, simply attach the restraints and press the remote control for effortless loading of combined wheelchair and passenger weights up to 250kg*.
*tested at 15 degree slope
WATCH
INCLUSION

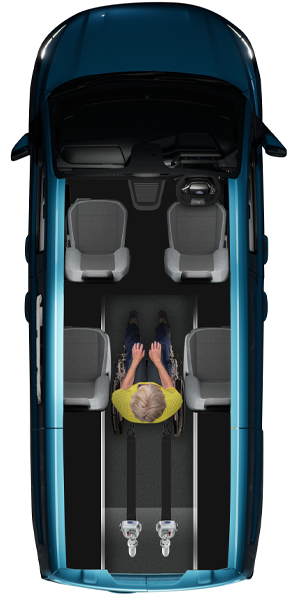

Central Wheelchair Location
The wheelchair user travels inclusively as part of the social group, in comfort away from the bumps of the rear axle. Travelling centrally within the vehicle is also considered to be safer for the wheelchair user, when compared to travelling behind the rear seats.
ACCESSIBILITY
Lightweight Ramp
Our custom-built, lightweight ramp is counterbalanced, so that it can be lifted with minimal effort by foot or hand. The angle is shallow to enable easy loading , while long life fittings ensure minimal maintenance and reliable performance for years to come. Finished with a high-traction surface that makes access easy for manual or power chairs.
WATCH
COMFORT
Full-Size Rear Seats
Despite the huge capacity, no compromises are required for other passengers: the two accompanying rear seats are full size, with heating function, convenient USB charging ports at hand, and ISOFIX mountings – giving everyone in the family the ability to travel their own way.
SAFETY
STORQ System
STORQ automatically applies extra tension to the wheelchair restraints – ideal for those with limited grip or dexterity who might struggle with traditional buckles. By ensuring the rear restraints are properly tensioned, the wheelchair user enjoys a safer, more stable ride. Suitable for wheelchairs up to 150kg.
WATCH
SPACE
Designed for Adventure
The Brotherwood “Tall Boy” conversion is designed to accommodate the new generation off large-off-road power chairs in comfort and safety.
WATCH
SAFETY
200kg Restraint System
The optional 200kg wheelchair restraint system is tested to the highest levels of safety, providing peace of mind to users of heavier wheelchairs.
SEE INSIDE
Interactive Experience
Take a virtual test drive of the Ford Tourneo Connect Wheelchair Accessible Vehicle with our interactive 360º interior experience.
EXPLORE IN DETAIL
Specification & Pricing
Dimensions & Layout
| INTERIOR | mm | inches |
|---|---|---|
| Max. Internal Headroom 1 | 1610 | 63 ¼ |
| Lowered Floor Length | 1720 | 67 ¾ |
| Lowered Floor Width | 760 | 30 |
| Max. Wheelchair Armrest Width | 678 | 26 ¾ |
| ACCESS | mm | inches |
| Entry Height | 1566 | 61 ½ |
| Access Ramp Length | 1203 | 47 ½ |
| Access Ramp Width | 781 | 30 ¾ |
| Access Ramp Angle | 14.3º | |
| EXTERIOR | mm | inches |
| Exterior Height | 2040 | 80 ½ |
| Exterior Length | 5050 | 199 |
| Exterior Width (inc. Mirrors) | 2275 | 89 ½ |
1 Internal headroom may vary depending on wheelchair travelling position and vehicle specification. All information including dimensions and technical data subject to testing in accordance with PAS 2012-1:2019 and GB Whole Vehicle Type Approval.
Comfort Features
The two second-row rear seats with integrated 3-point safety belts can individually fold for even more internal space, and feature ISOFIX-style child seat anchors. Individually heated on Titanium X Luxe models.
Tri-zone electronic automatic temperature control gives front and rear passengers their own individual climate control. The system then automatically maintains your desired settings.
For greater flexibility and easier access for all, optional power operated side doors provide convenient access, combined with the lower step-in height offered by the all-new architecture of the Tourneo Custom.
The SYNC4 cloud-based service gives you real-time, reliable travel information for a seamless and efficient journey. Optimise your route with live traffic updates, fuel prices, weather, parking and hazard reports.
A tinted glass roof creates a bright, airy environment that incorporates passengers into the world around them. A special coating helps interiors stay cooler in summer and warmer in winter.
360º Camera
The 360 Camera with split-view display helps you to be more aware of your surroundings. Images from several cameras positioned around the vehicle are used to display a comprehensive view of the area around you.
Full Size Heated Rear Seats
The two second-row rear seats with integrated 3-point safety belts can individually fold for even more internal space, and feature ISOFIX-style child seat anchors. Individually heated on Titanium X Luxe models.
Tri-Zone Climate Control
Tri-zone electronic automatic temperature control gives front and rear passengers their own individual climate control. The system then automatically maintains your desired settings.
Power Side Doors
For greater flexibility and easier access for all, optional power operated side doors provide convenient access, combined with the lower step-in height offered by the all-new architecture of the Tourneo Custom.
Connected Navigation
The SYNC4 cloud-based service gives you real-time, reliable travel information for a seamless and efficient journey. Optimise your route with live traffic updates, fuel prices, weather, parking and hazard reports.
Panorama Roof
A tinted glass roof creates a bright, airy environment that incorporates passengers into the world around them. A special coating helps interiors stay cooler in summer and warmer in winter.
Models & Specifications
Standard Specification
Titanium
- Fixed LED Headlamps
- Auto High Headlamp
- Body Coloured Dual Power mirrors, auto power fold
- Automatic Windshield Wiper
- Front Windshield Defroster (Quick Clear)
- Automatic Air Conditioner
- 13” Touchscreen
- Heated manual 4-way adjustable driver seat
- Heated manual 4-way adjustable passenger seat
- Driver and passenger lumbar support
- Driver & Passenger inboard armrest
- Curtain, passenger and side mounted airbags
- 3 Rear USB Ports
- Sensico Steering Wheel
- 5G embedded modem
- SYNC 4
- Thatcham Category 1 Alarm
- Rear Parking Aid
- Front Parking Aid
- Pre-Collision Assist
- Intelligent Speed Limiter
- Intelligent Adaptive Cruise Control
- Navigation Centre
- Blind Spot Indicator with Cross Traffic Alert
- Rear View Camera
- Privacy Glass
- 17” Twin Spoke Alloy wheel in Carbonised Grey
Additional Specification
Titanium X Luxe
- Panorama Roof
- 2nd Row Individual Heated Power Seat
- B&O Sound System with 14 Speakers
- Wireless Charging
- Interior Ambient Lighting
- LED Tail-lights
- 19” Titanium X Alloy wheel
- Power Dual Side Load Door
- Heated power 6-way adjustable driver seat
- Heated power 6-way adjustable passenger seat
- Power driver and passenger lumbar support
- Driver and passenger adjustable armrests
- Tri-zone EATC Climate Control
- Picnic Light
- USB/AUX Power Socket
- Navigation Plus Pack
- 360° Camera
Adaptations
Q'STRAINT
QLK
WHEELCHAIR DOCKING SYSTEM
QLK is a floor-mounted wheelchair docking system. The wheelchair is secured by driving onto the docking station, whereby the QLK bracket mounted on the underside of the wheelchair engages into place for fast, effortless restraint.
- Fast locking and unlocking via remote control
- Hands-free drive and dock operation
- Compatible with selected wheelchair models
BRAUNABILITY
TURNY Evo
POWER TRANSFER SEAT
The Turny® Evo is a seat lift that moves the car seat completely outside the vehicle and lowers it down to your desired level. This makes it easier for you to sit down or transfer from a wheelchair. Once you're seated, push a button and the Turny® Evo will lift you inside the car. It's a simple yet very effective way to make your car more accessible.
- Easy to use hand control
- Smartphone compatible
- Built-in footrest
Aftercare
Nationwide Customer Support
For complete peace of mind we offer an annual Safety Assurance Programme.
A qualified service engineer will visit at a time and place that suits you, to perform a full 15-point conversion safety inspection, including restraints, ramp, safety belts and more to ensure safe operation of your conversion.
- Ramp Grip Tape
- Ramp Rubbers
- Floor Covering & Carpets
- Front, Rear and Occupant Restraints
- Rear Restraints
- Occupant Restraints
- Cut-Off Switch
- Front restraint
- Power Switch
- Tailgate Struts
- Remote Control
- Ratchin / PAWRS Operation
- Ramp Operation
- Tyre Wear
- Oil Level Check
- Coolant Level Check
Conversion Warranty
UK Type Approval No. TBC
Stage 1 (OEM) Type Approval No. TBC
Stage 1 Manufacturer: Ford-Werke GmbH, Henry-Ford-Straße 1, D-50735 Köln, Deutschland
